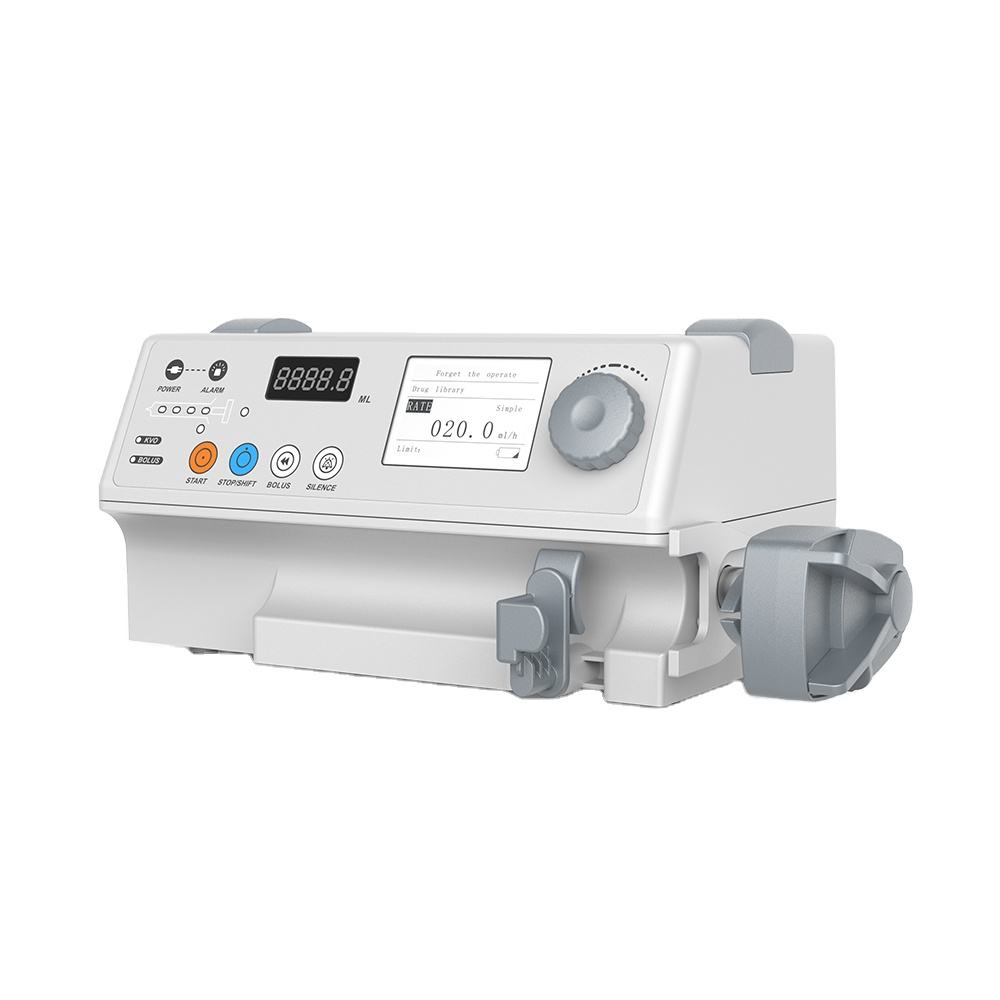

Electric Syringe Pump for Hospital Use
Electric Ambulatory Infusion Pump and Syringe Pump for Hospital Use
$200.00
Manufacturer: Byond Medical
Certificate: CE, ISO

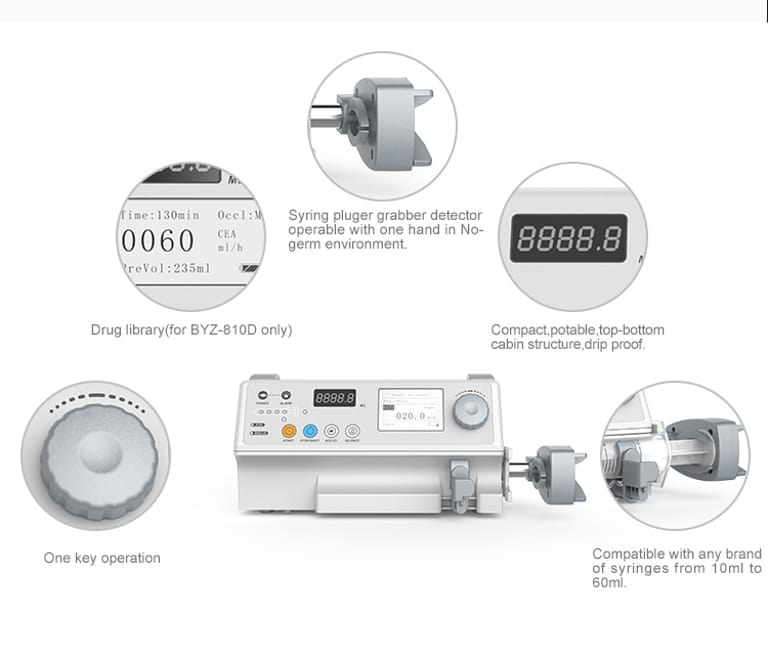

Easy operation
Brand new appearance provides a better experience
Clearly, LCD and digital tube dual display

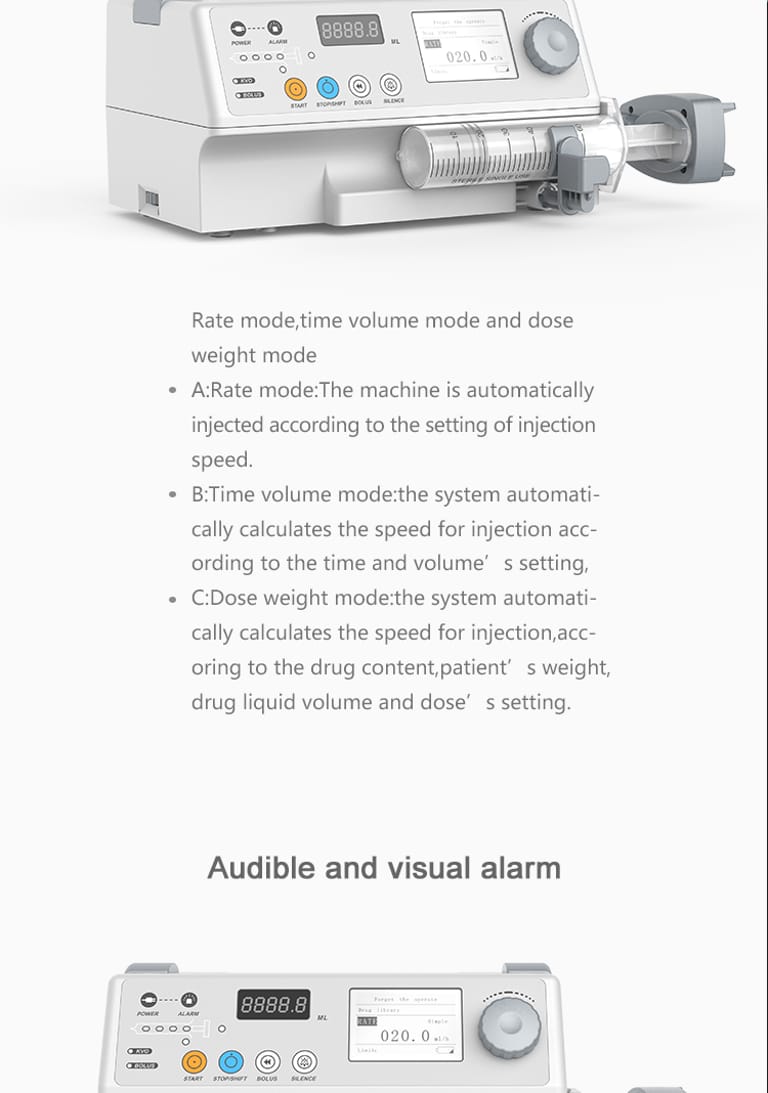

Simple rate mode with one key start, easy to operate
Precision more safer
Three occlusion levels for the option
Intelligent recognition of the 10ml、20ml、30ml、50ml(60ml) syringe, can work with any brand syringe after calibration
Intelligent & safe
Low noise and less vibration are supported by the application of a motor driver IC imported from Germany and a motor imported from Japan.
Unique voice, word, and light combination alarms, very fast and reliable

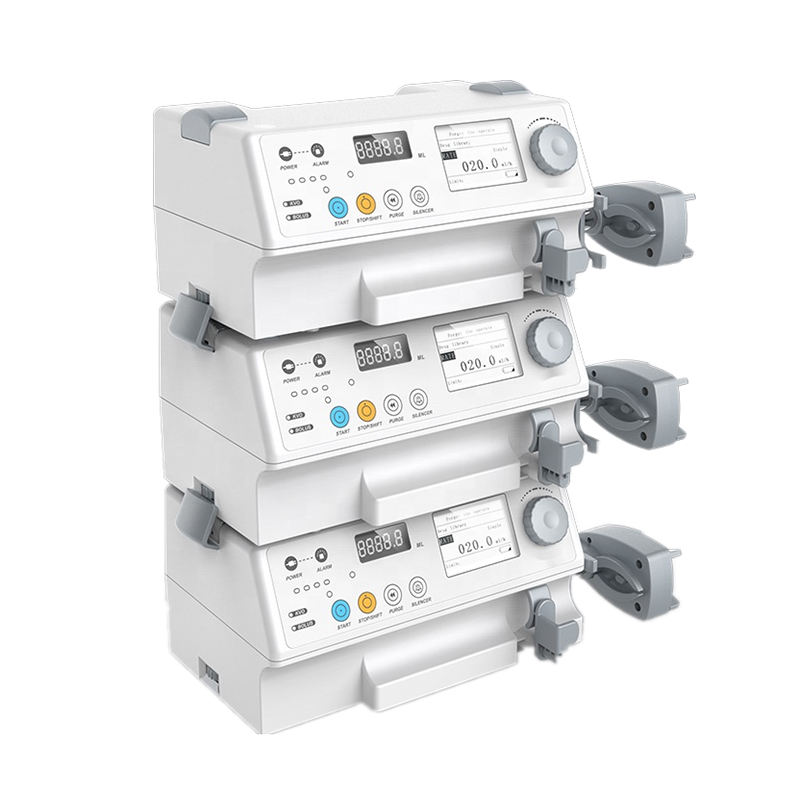

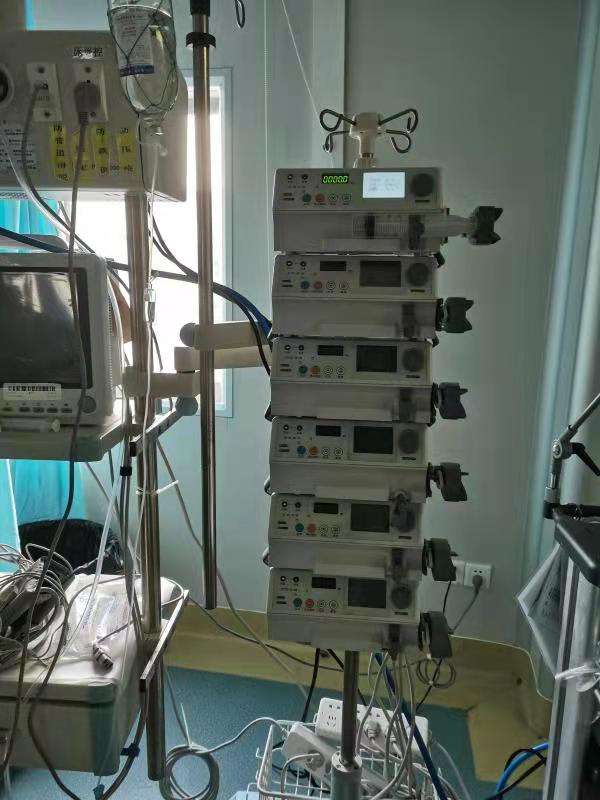

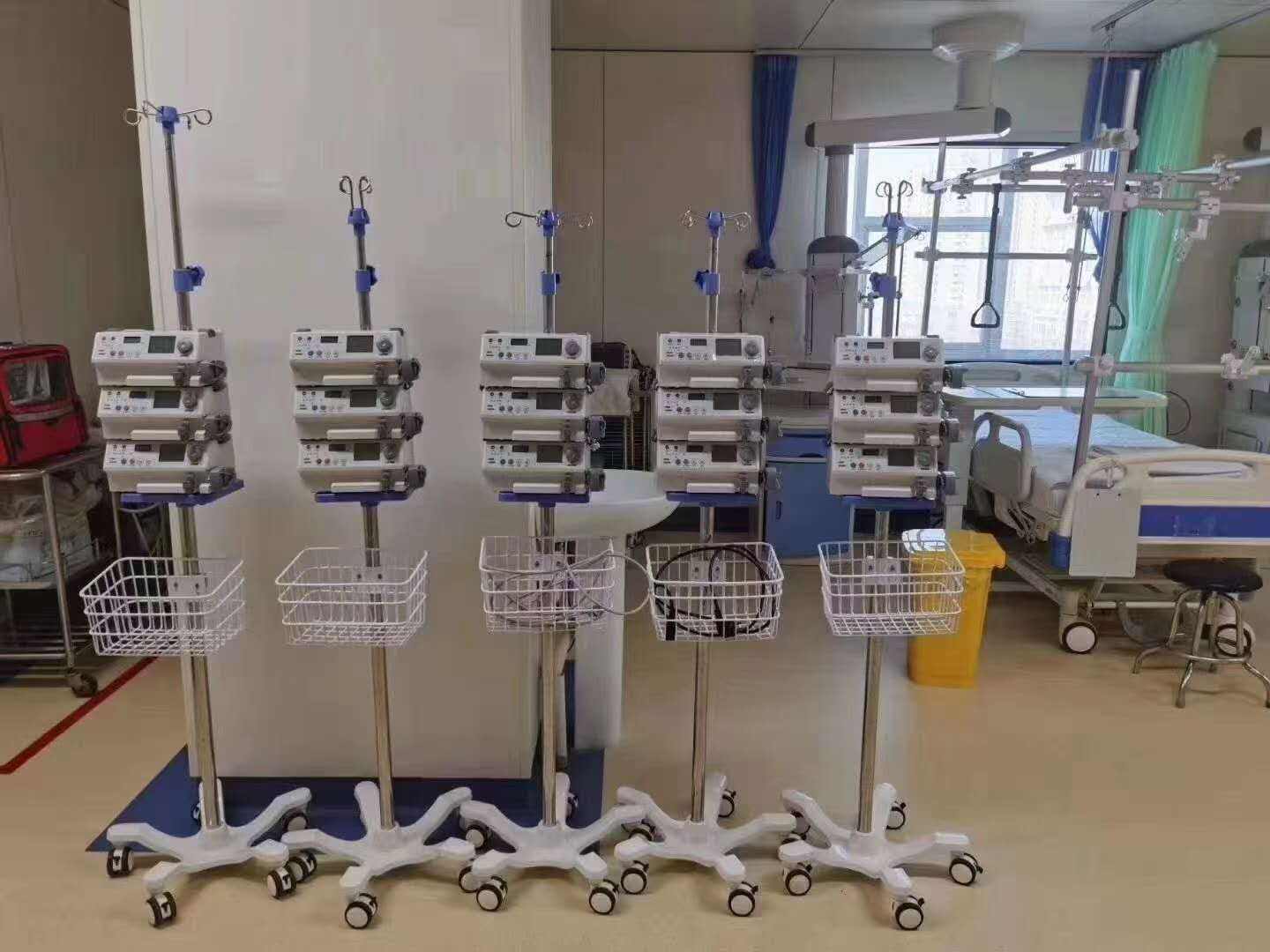

Can be stacked to save space

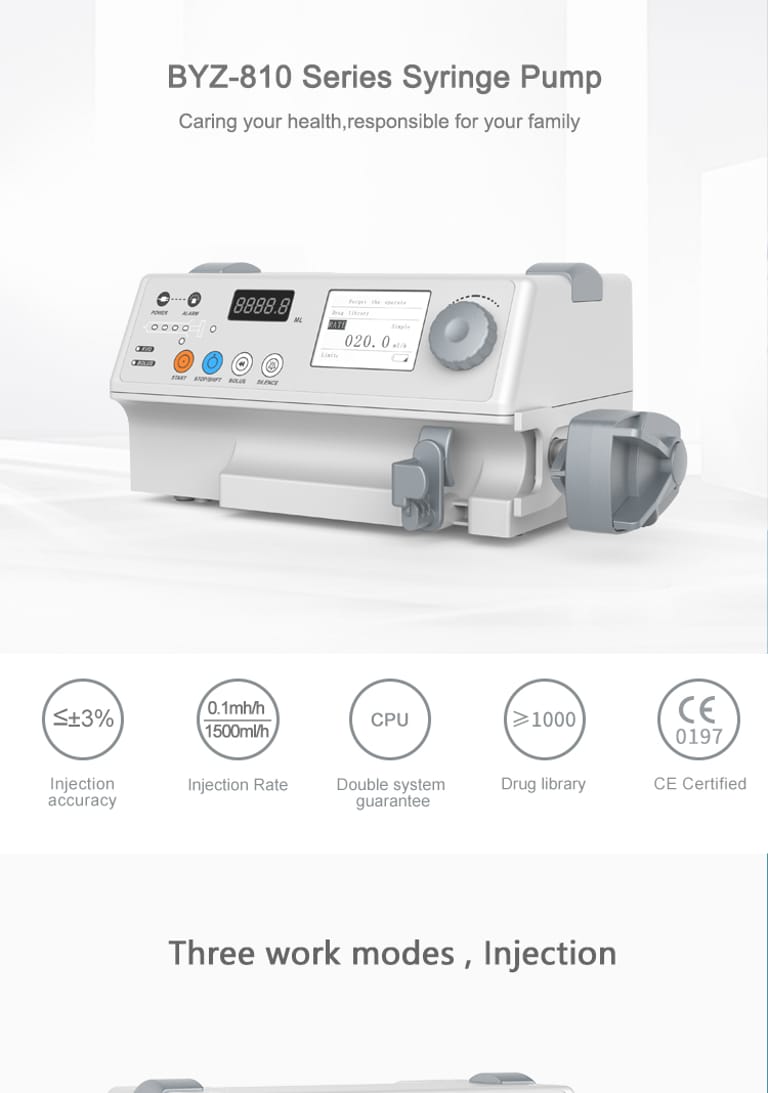

Model | BYZ-810 & BYZ-810D |
Infusion Rate | 50/60ml Syringe: 0.1ml/h~1500ml/h(0.1ml/h step) 30ml Syringe: 0.1ml/h---900ml/h(0.1ml/h step) 20ml Syringe:0.1ml/h---600ml/h(0.1ml/h step) 10ml Syringe 0.1ml/h---300ml/h(0.1ml/h step) |
Rate Accuracy | Within±3%(after correct calibration) |
Maximum Stackable | 8pcs |
Mechanical Accuracy | Within±2% |
Bolus Rate | 50(60)ml Syringe:1200ml/h 30ml Syringe:720ml/h 20ml Syringe:480ml/h 10ml Syringe:240ml/h |
Volume Limit | 0.1ml---9999.9ml(0.1ml step) |
Total Injection | 0.1ml---9999.9ml(0.1ml step) |
Maximum Infusion Pressure | 150kPa |
Occlusion | High 800mmHg±200mmHg(106.7kPa±26.7kPa) Medium 500mmHg±100mmHg(66.7kPa±13.3kPa) Low 300mmHg±100mmHg(40.7kPa±13.3kPa) |
Audible and Visible Alarms | Occlusion、Equipment failure、Software Exception、Injection finish、Limited finished、Battery running out、Improperly installed |
Power Source | 100-240Vac,50/60Hz;Internal rechargeable Li battery,capacity³1800mAh,voltage=11.1V,4 hours backup time at the rate of 25ml/h(appointed medium rate in IEC60601-2-24)for the new battery charged for 12 hours.To facilitate the use in some special occasions,the machine's DC outlet can be an external DC 12V 2A standby power supply. |

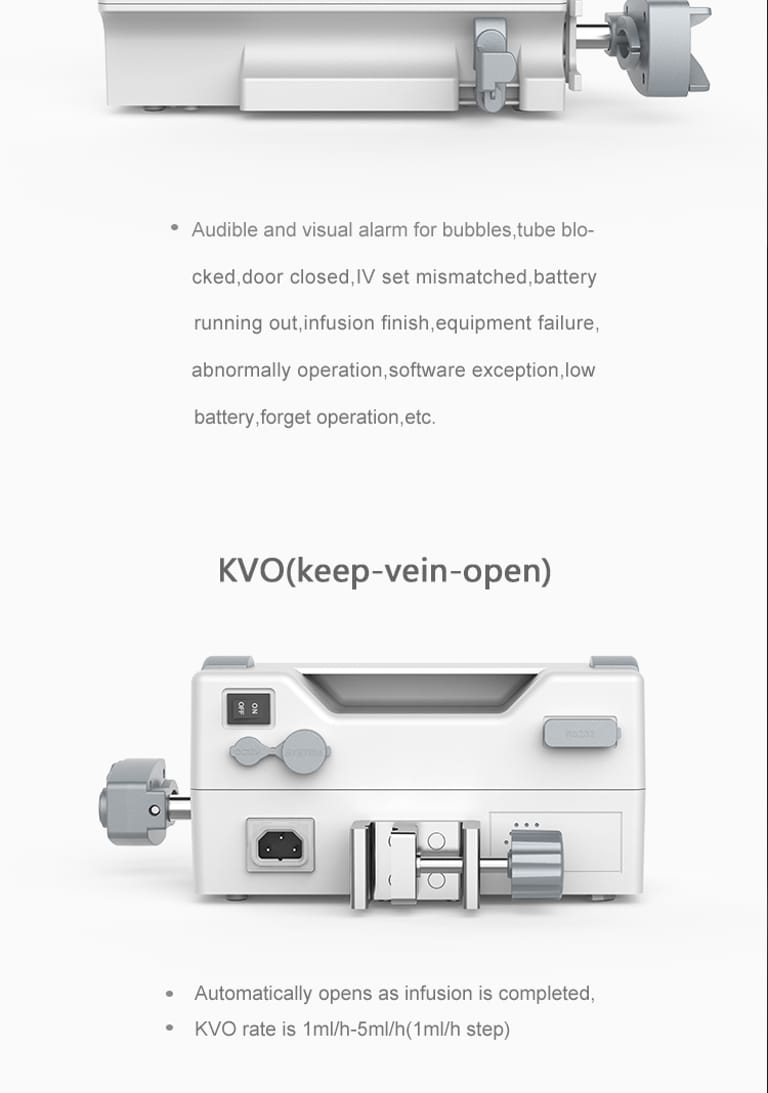

KVO Speed | 0.1~5m/h(0.1ml/h step) |
Power Consumption | 35VA |
Fuse | T2AH/250V,2pcs installed |
IP Classification | IPX2 |
Equipment Classification | Class I,intermal power supply,Type CF |
Operation Environment | a)Ambient temperature: +5℃~+40℃ b)Relative Humidity:20%~90% c)Atmospheric pressure:86.0kPa~106.0kPa |
Transport&Storage Condition | a)Ambient temperature: -20℃~+55℃ b)Relative Humidity:≤95% c)Atmospheric pressure:50.0kPa~106.0kPa |
Syringe | Compatible with 10ml,20ml,30ml,50/60ml syringe of any brands after correct calibration |
Dimension | 280mm(L)×210mm(W)×130mm(H) |
Net Weight | 2.2kg |
Package Reference | 1pc Carton:3.2KG,36cm(L)×29cm(W)×18cm(H) 2pcs Carton:7.2KG,39cm(L)×38cm(W)×31cm(H) 3pcs Carton:10.7KG,58cm(L)×38cm(W)×31cm(H) |
