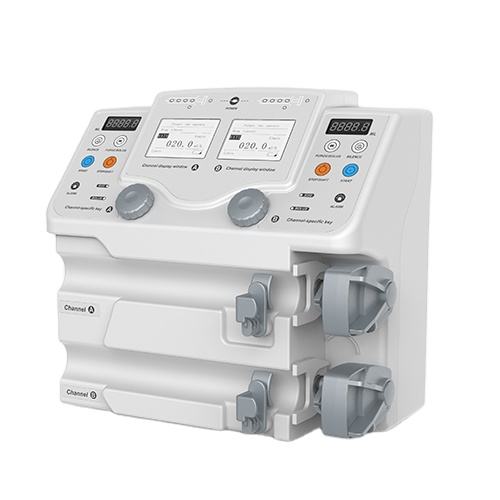

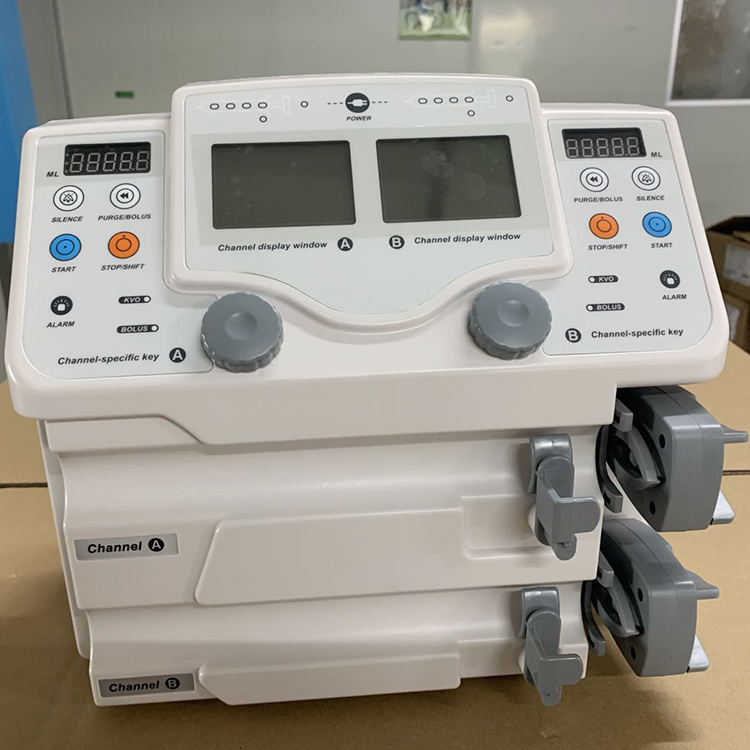

Portable Double Channel Syringe Infusion Pump

Model

BYZ-810T & BYZ-810TU

Infusion Rate

50(60)ml Syringe 0.1ml/h---999.9ml/h(0.1ml/h step)

1000mh/h---1500ml/h (1ml/h step)

30ml Syringe 0.1ml/h---900ml/h(0.1ml/h step)
20ml Syringe 0.1ml/h---600ml/h(0.1ml/h step)

10ml Syringe 0.1ml/h---300ml/h(0.1ml/h step)

Rate Accuracy

Within±3%(after correct calibration)

Purge Rate

50(60)ml Syringe:1500ml/h

30ml Syringe:900ml/h

20ml Syringe:600ml/h

10ml Syringe:300ml/h

Mechanical Accuracy

Within±2%

Bolus Rate

50(60)ml Syringe:1200ml/h

30ml Syringe:720ml/h

20ml Syringe:480ml/h

10ml Syringe:240ml/h

Equipment Classification

Class I,intermal power supply,Type CF

Fuse

T2AH/250V,2pcs installed

Power Consumption

35VA

KVO Speed

1m/h

Audible and Visible Alarms

Occlusion、Equipment failure、Software Exception、Injection finish、Limited finished、Battery running out、Improperly installed
、Abnormal operation ect.

Occlusion

High 800mmHg±200mmHg(106.7kPa±26.7kPa)

Medium 500mmHg±100mmHg(66.7kPa±13.3kPa)

Low 300mmHg±100mmHg(40.7kPa±13.3kPa)

Total Injection

0.1ml---9999.9ml(0.1ml step)

Volume Limit

0.1ml---9999.9ml(0.1ml step)

Maximum Infusion Pressure

150kPa

Bolus Rate

50(60)ml Syringe:1200ml/h

30ml Syringe:720ml/h

20ml Syringe:480ml/h

10ml Syringe:240ml/h

Power Source

100-240Vac,50/60Hz;Internal rechargeable Li battery,capacity³1800mAh,voltage=11.1V,4 hours backup time at the rate of25ml/h(appointed medium rate in IEC60601-2-24)for the new battery charged for 12 hours.To facilitate the use in some special
occasions,the machine's DC outlet can be an external DC 12V 2A standby power supply.

IP Classification

IPX2

Syringe maximum value (under single fault condition)

1ml

Dimension

280mm(L)×255mm(W)×205mm(H)

Net Weight

3.6kg

Package Reference

1pc Carton:4.6KG,34cm(L)×32cm(W)×26cm(H)

2pcs Carton:9.2KG,76cm(L)×30cm(W)×36cm(H)
