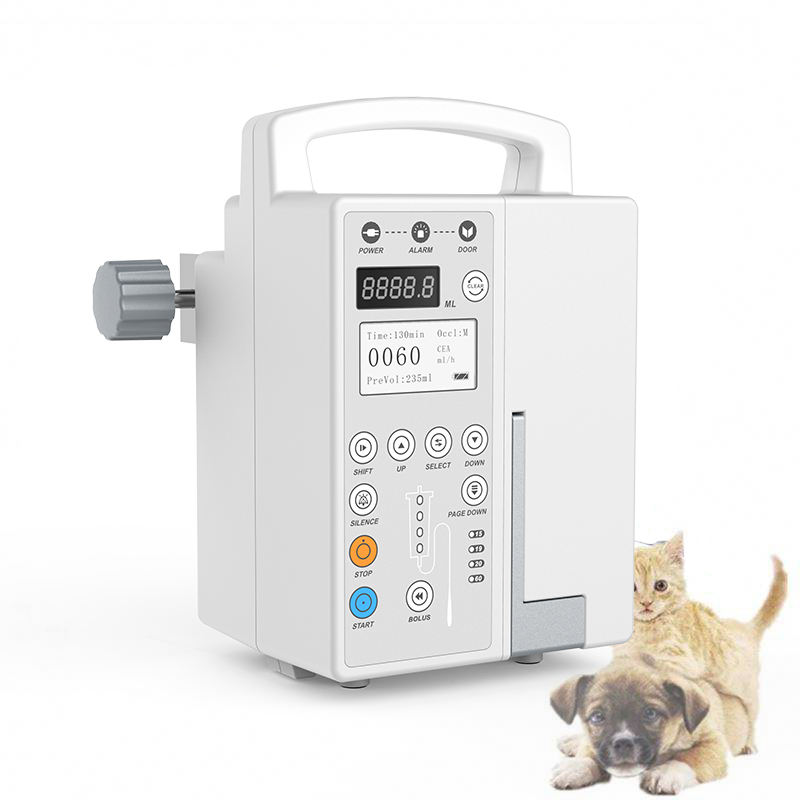

Portable Medical Infusion pump for human and Vet use

Model

BYS-820& BYS-820D

Infusion Rate

ml/h mode:1~1200ml/h(1ml/h step)

drop/min mode:1~266drop/min(1drop/min step)

Purge Rate

100mh/h---1200ml/h(can be calibrated)

Flow Rate Accuracy

ml/h mode:Within±5%(after correct calibration)

drop/min mode:Within±3%(after correct calibration)

Mechanical Precision

Within±2%

Maximum infusion pressure

150kPa

Alarm Pressure

High 800mmHg±200mmHg(106.7kPa±26.7kPa)

Medium 500mmHg±100mmHg(66.7kPa±13.3kPa)

Low 300mmHg±100mmHg(40.7kPa±13.3kPa)

Audible and Visible Alarms

There are bubbles、Tube is blocked、Close the door、IV set Mismatched、Battery running out、Infusion finish、Equipment
failure、Abnormally Operation、Software Exception、Low battery、 forget the operations etc

Transport&Storage Condition

Temperature -20℃~+55℃

Relative Humidity ≤95%

Atmospheric Pressure 50.10KPa---106.0KPa

Infusion Set

Compatible with any brand of infusiong sets ater correct calibration The following brands of infusiong sets are
recommended:GEA、Onemed、SHINVA

Infusion maximum value (under single fault condition)

1ml

Forbidden

Not support blood Infusion

Dimension

140mm(L)×157mm(W)×220mm(H)

Net Weight

1.8kg

Package Reference

1pcs  Carton:2.8KG,33cm(L)×28cm(W)×26cm(H)

 2pcs Carton:6.5KG,52cm(L)×30cm(W)×36cm(H)

 3pcs Carton:9.6KG,76cm(L)×30cm(W)×36cm(H)
